Draft survey is a method used to determine the weight of cargo loaded or discharged from a ship. This is done by measuring the ship's draft (the vertical distance between the waterline and the bottom of the hull) before and after the cargo operation. Here's a detailed outline of the draft survey process:

Preparatory Steps

Obtain Vessel Particulars:

Hydrostatic data:Information about the vessel's draft and corresponding displacement, including corrections for trim, water density,and hull deflection.

Tank data: Capacities and contents of all tanks (ballast, fuel, freshwater, etc.).

Trim and list tables: Data for correcting draft readings based on the ship's trim (fore-aft inclination) and list (side-to-side inclination).

Environmental Conditions:

Water density:Measure the density of the water in which the vessel is floating, as it affects buoyancy.

Weather conditions: Note the wind and sea conditions, as they can affect the vessel's draft.

Draft Measurement

Read Draft Marks:

Forward, midship, and aft: Measure the draft at three points on each side of the vessel.

Corrections for trim and list: Apply corrections to account for any inclination of the vessel.

Record Readings:

Draft readings:Document the draft readings carefully, noting the positions and any observable factors affecting the readings (e.g., waves, swell).

Calculation of Displacement:

Hydrostatic Tables:

Displacement from tables: Using the corrected draft readings, refer to the hydrostatic tables to find the vessel's displacement.

Trim and List Corrections:

Adjust displacement: Apply necessary corrections for trim and list to get the accurate displacement.

Tank Sounding:

Measure Tank Contents:

Sound tanks: Measure the contents of all tanks (ballast, fuel, freshwater, etc.) to determine their weight.

Density Corrections:

Correct for density:Adjust the measured tank contents based on the density of the liquids.

Cargo Weight Calculation

Calculate Lightship Weight:

Lightship displacement: The weight of the vessel when it is empty (including ballast, fuel, stores, and crew).

Determine Cargo Weight:

Cargo weight before loading:Measure the displacement before loading, including any corrections for tank contents.

Cargo weight after loading:Measure the displacement after loading, including any corrections for tank contents.

Net cargo weight: Subtract the before-loading displacement from the after-loading displacement to determine the weight of the cargo loaded or discharged.

Report and Documentation

Draft Survey Report:

Document findings:Prepare a detailed report including all measurements, corrections, calculations, and environmental conditions.

Verification: Ensure the accuracy of the data by cross-checking with ship's officers and other relevant parties.

Certification:

Official records:Provide the draft survey report to relevant authorities, shipping companies, and cargo owners as required.

Importance of Draft Surveys

Accuracy: Provides precise measurement of cargo weight, critical for shipping, trading, and regulatory compliance.

Efficiency: Helps in optimizing loading and unloading operations.

Safety: Ensures the vessel's stability and seaworthiness by maintaining proper loading practices.

 A bunker survey is an inspection conducted to verify the quantity and quality of fuel oil (bunkers) on board a vessel. This survey is critical for various stakeholders, including shipowners, charterers, and bunker suppliers, to ensure accurate recording of fuel inventory and compliance with contractual agreements. Here's an overview of the bunker survey process:

Purpose of a Bunker Survey

Verification: Confirm the amount of fuel on board at a specific time.

Compliance: Ensure adherence to regulations and standards.

Dispute Resolution: Provide evidence in case of disagreements between parties involved.

Types of Bunker Surveys

On-Hire/Off-Hire Surveys: Conducted when a vessel is being delivered to or redelivered from a charterer.

Bunker Delivery Surveys: Conducted during the delivery of fuel to the vessel.

Intermediate Surveys: Performed periodically to check the bunker quantity and condition.

Steps in a Bunker Survey

Preparation:

Review the vessel’s fuel logs and delivery receipts.

Confirm survey details with the vessel's crew and relevant parties.

Tank Sounding:

Measure the fuel levels in each bunker tank using sounding tapes or electronic gauging devices.

Record temperatures of the fuel to account for density variations.

Sampling:

Collect fuel samples from different tanks and the delivery line.

Follow standard procedures to ensure representative sampling.

Calculation:

Convert sounding measurements into volume using the tank calibration tables.

Adjust for temperature and density to calculate the actual fuel quantity.

Documentation:

Compile a comprehensive survey report detailing the findings.

Include sounding records, calculations, and any discrepancies noted.

Reporting:

Submit the survey report to the relevant parties.

Discuss any issues or discrepancies and recommend corrective actions if needed.

Equipment Used

Sounding tapes or electronic gauging devices

Thermometers for temperature measurement

Sample bottles and sealing equipment

Calibration tables and density charts

Common Issues and Considerations

Accuracy: Ensuring precise measurements to avoid disputes.

Contamination: Checking for water or other contaminants in the fuel.

Safety: Following safety protocols to prevent accidents during the survey.

Regulatory Compliance: Adhering to MARPOL and other regulations governing marine fuel.

Importance of a Bunker Survey

Cost Control: Accurate measurement helps in controlling fuel costs and preventing losses.

Environmental Compliance: Ensures that fuel quality meets environmental standards.

Operational Efficiency: Helps in maintaining optimal fuel levels for efficient vessel operation.

**A bunker survey is an essential practice in the maritime industry, helping to maintain transparency, efficiency, and compliance in fuel management.**

A vessel's condition survey is a comprehensive inspection and assessment of the physical and operational condition of a ship or boat. This type of survey is typically conducted by marine surveyors, who are professionals with expertise in evaluating the condition of maritime assets. The purpose of a vessel's condition survey is to determine the vessel's overall health, identify any deficiencies or potential issues, and provide an objective assessment for various stakeholders, such as owners, insurers, or potential buyers.

Here are some key aspects typically covered in a vessel's condition survey:

Hull and Structure:

Inspection of the hull for signs of damage, corrosion, or deterioration.

Assessment of the structural integrity and overall condition of the vessel's framework.

Machinery and Equipment:

Examination of the propulsion system, including engines, gears, and propellers.

Inspection of auxiliary systems such as generators, pumps, and other machinery.

Electrical Systems:

Evaluation of the vessel's electrical systems, wiring, and components.

Testing of navigation lights, communication equipment, and other electrical devices.

Safety Equipment:

Verification of the presence and condition of safety equipment, including life jackets, life rafts, fire extinguishers, and signaling devices.

Navigational and Communication Systems:

Testing and inspection of navigation instruments, radar, GPS, and communication devices.

Interior and Accommodations:

Assessment of the living and working spaces, including the condition of furniture, appliances, and other interior components.

Documentation Review:

Examination of the vessel's documentation, including certificates, maintenance records, and logbooks.

Sea Trials:

Conducting sea trials to evaluate the vessel's performance under actual operating conditions.

The findings of the survey are typically compiled into a detailed report that highlights any deficiencies, recommendations for repairs or maintenance, and an overall assessment of the vessel's condition. This information is valuable for owners, operators, insurers, and potential buyers to make informed decisions regarding the vessel's safety, reliability, and value.

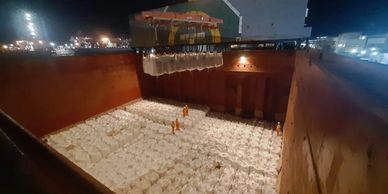

 Hold inspections are critical assessments conducted to ensure the cleanliness, integrity, and suitability of a ship’s cargo holds before, during, and after loading cargo. These inspections are vital for maintaining the quality of the cargo, ensuring safety, and complying with regulatory standards. Here's a comprehensive guide to hold inspections:

Purpose of Hold Inspections

Cargo Integrity: Ensure the hold is clean and free from contaminants that could damage the cargo.

Safety: Check for structural integrity to prevent accidents during loading, transit, and unloading.

Regulatory Compliance: Meet international and local regulations to avoid fines and delays.

Contractual Obligations: Fulfill charter party requirements and avoid disputes with charterers or shippers.

Types of Hold Inspections

Pre-Loading Inspection: Conducted before loading cargo to ensure the hold is ready and suitable for the intended cargo.

During Loading Inspection: Ongoing checks during the loading process to ensure proper stowage and prevent damage.

Post-Loading Inspection: Performed after loading to verify that the cargo has been properly stowed and secured.

After Discharge Inspection: Conducted after unloading to assess any damage or residues left behind and prepare for the next cargo.

Steps in Hold Inspections

Preparation:

Review the cargo details and specific requirements for the hold.

Gather necessary tools and equipment, such as inspection lights, tapes, and sampling kits.

Visual Inspection:

Inspect the hold’s structural components, including bulkheads, frames, and deckheads, for any damage or corrosion.

Check for cleanliness and the presence of any residues, previous cargo remnants, or contaminants.

Ensure that all bilge wells and drainages are clean and functional.

Functional Checks:

Verify the operation of hatch covers, securing devices, and ventilation systems.

Ensure that lighting and other necessary facilities are operational.

Special Checks (if required):

Perform tests for gas detection if carrying sensitive cargo.

Check for pest infestation or fumigation residues, especially for food-grade cargoes.

Documentation:

Record all findings in a detailed inspection report.

Note any discrepancies, damage, or areas requiring cleaning or repair.

Take photographs to support findings.

Reporting:

Submit the inspection report to relevant parties, including the shipowner, charterer, and port authorities.

Discuss any issues found and recommend necessary actions.

Equipment Used

Inspection lights or torches

Measuring tapes and rulers

Sampling kits for residue analysis

Cameras for photographic evidence

Gas detectors for hazardous atmospheres

Personal protective equipment (PPE)

Common Issues and Considerations

Residue and Contamination: Ensuring no remnants from previous cargoes that could contaminate the new load.

Structural Damage: Identifying and repairing any damage to the hold structure to maintain safety.

Moisture and Ventilation: Preventing moisture build-up and ensuring proper ventilation to avoid cargo damage.

Pest Control: Ensuring no pest infestation that could damage cargo, especially in food-related shipments.

Importance of Hold Inspections

Cargo Quality: Ensures that the cargo remains in optimal condition during transit.

Operational Safety: Prevents accidents and ensures the structural integrity of the vessel.

Regulatory Adherence: Meets the required standards and avoids penalties.

Dispute Avoidance: Provides evidence in case of disputes regarding cargo condition.

**Hold inspections are a crucial part of the maritime shipping process, ensuring that cargo holds are clean, safe, and ready to carry the next load of cargo. They help maintain the integrity of the cargo and the vessel, contributing to efficient and safe maritime operations.**

Vehicle inspections for export or import are critical procedures to ensure that vehicles meet the regulatory and safety standards of the destination country. These inspections help prevent the entry of unsafe or non-compliant vehicles into a market and ensure that all necessary documentation is accurate and complete. Here's a comprehensive guide to vehicle inspections for export or import:

Purpose of Vehicle Inspections

Safety: Ensure vehicles are safe to operate.

Compliance: Meet the regulatory standards of the importing country.

Documentation: Verify that all paperwork is accurate and complete.

Condition Assessment: Assess the physical and mechanical condition of the vehicle.

Environmental Standards: Ensure vehicles meet environmental and emission standards.

Steps in Vehicle Inspections

Preparation:

Gather all necessary documentation, including the vehicle's title, registration, and any previous inspection records.

Understand the specific requirements and standards of the importing country.

Visual Inspection:

Check the exterior and interior of the vehicle for any damage, rust, or modifications that could affect safety or compliance.

Ensure that all lights, mirrors, windows, and other safety features are intact and functioning.

Mechanical Inspection:

Inspect the engine, transmission, brakes, steering, and suspension systems for proper operation.

Check for any leaks or unusual noises that might indicate mechanical problems.

Emissions Testing:

Conduct emissions tests to ensure the vehicle meets the environmental standards of the importing country.

Verify that the catalytic converter and other emission control devices are functioning properly.

Documentation Check:

Verify the Vehicle Identification Number (VIN) against the documentation.

Ensure that all necessary documents, such as the bill of lading, import/export certificates, and proof of ownership, are accurate and complete.

Compliance Verification:

Confirm that the vehicle meets all regulatory standards, including safety, emissions, and any specific requirements for the type of vehicle being imported/exported.

Check for any recalls or safety notices that may affect the vehicle's compliance.

Final Report:

Compile a detailed inspection report noting any deficiencies or areas of concern.

Provide recommendations for any necessary repairs or modifications to meet compliance standards.

Equipment Used

Diagnostic tools for mechanical and electronic systems

Emissions testing equipment

Inspection checklists specific to the importing country’s standards

Camera for photographic evidence

Tools for measuring and checking various vehicle componentes.

Common Issues and Considerations

Regulatory Differences: Different countries have varying standards and regulations; understanding these is crucial.

Vehicle History: Ensuring the vehicle has not been stolen or previously written off in another country.

Modification Compliance: Checking that any modifications made to the vehicle comply with the destination country’s regulations.

Documentation Accuracy: Ensuring all documents are correctly filled out and match the vehicle details.

Importance of Vehicle Inspections

Safety Assurance: Ensures that only safe vehicles are allowed on the roads.

Regulatory Compliance: Helps avoid fines, legal issues, and import/export delays.

Environmental Protection: Ensures that vehicles meet emission standards, contributing to environmental conservation.

Market Integrity: Maintains the integrity of the automotive market by preventing the entry of substandard vehicles.

Nunes Assessoria Marítima offers specialized pre-load and loss prevention services to ensure the safety and integrity of your cargo. Our services include:

• Pre-Load Inspections: Thorough examinations before loading to identify and mitigate potential risks.
• Loss Prevention Strategies: Implementation of best practices to prevent cargo loss and damage during transit.
• Risk Assessments: Detailed evaluations to anticipate and address vulnerabilities.

These services are designed to safeguard your cargo and ensure smooth operations across almost all Brazilian ports.

Nunes Assessoria Marítima provides comprehensive hose testing services to ensure the integrity and safety of your liquid cargo operations. Our hose testing includes:

• Pressure Testing: Verifying hose strength and leak resistance under various pressure conditions.
• Inspection: Detailed checks for wear, damage, and compliance with safety standards.
• Certification: Providing documentation to certify that hoses meet industry regulations and are fit for use.

These services help prevent operational failures and ensure safe and efficient liquid cargo handling.

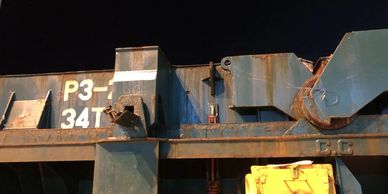

Nunes Assessoria Marítima offers professional hold sealing services to ensure the protection and integrity of your cargo during transit. Our hold sealing services include:

• Inspection: Thorough examination of cargo holds to identify potential vulnerabilities.
• Sealing: Application of high-quality sealing materials to secure cargo holds and prevent contamination or damage.
• Certification: Providing documentation confirming that holds are properly sealed and compliant with industry standards.

These services are essential for maintaining cargo quality and safety throughout the shipping process.
